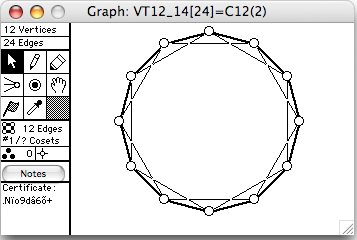

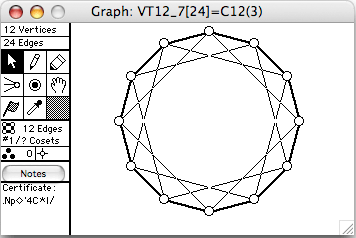

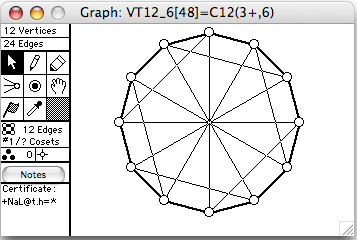

There are 64 connected vertex-transitive graphs on 12 vertices. The 10 of degree 4 (hence 24 edges) are shown here. The order of the automorphism group is given in square brackets in each window's title.

Notation:

• C_n means the cycle of length n
• C_n⁺ means the cycle of length n with diagonals
• C_n(k)  means the cycle of length n with chords of length k
• C_n(k⁺)  means the cycle of length n with chords of length k from every second vertex
• ~G   means the complement of G
• 2G   means two disjoint copies of G
• GxH   means the direct product of G and H
• Prism(m)  means C_mxK₂, ie, two cycles with corresponding vertices joined by a matching
• trunc(G),  where G is planar, means to truncate G, ie, replace each vertex of degree k by C_k
• L(G)   means the line-graph of G
• Octahedron   means the graph of the octahedron; this is L(K₄) or ~3K₂ or C₆(2)
• Dbl(G)   means the double of G. Make 2 copies of G, call them G₁ and G₂. If uv is an edge of G, then u₁v₂ and v₁u₂ are also edges of Dbl(G)
• Dbl⁺(G)   means the double of G, with the additional edges u₁u₂
• antip(G)  means the antipodal graph of G. It has the same vertices, but u and v are joined in antip(G) if they are are maximum distance in G

The complements of the graphs shown here are:

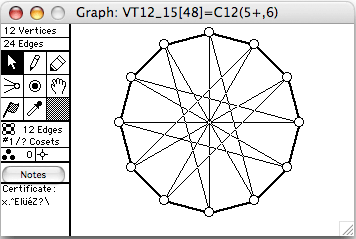

VT12_41 = ~C₁₂(5⁺,6)

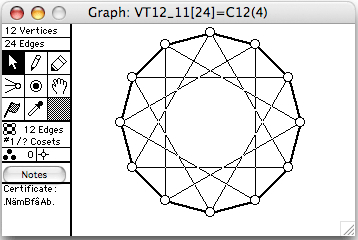

VT12_42 = ~C₁₂(4)

VT12_43 = ~C₁₂(2)

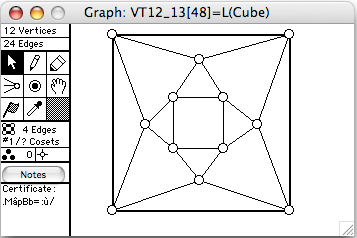

VT12_44 = ~L(Cube)

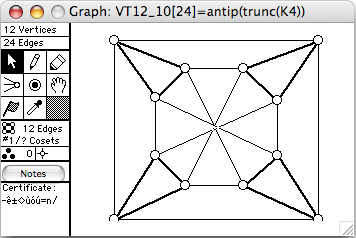

VT12_45 = ~antip(trunc(K₄))

VT12_46 = ~2Octahedron

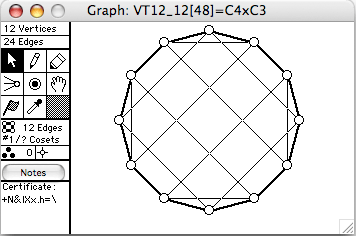

VT12_47 = ~(C₄xC₃)

VT12_48 = ~C₁₂(3⁺,6)

VT12_49 = ~C₁₂(3)

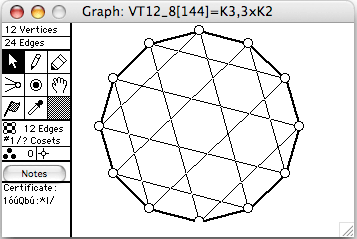

VT12_50 = ~(K_3,3xK₂)

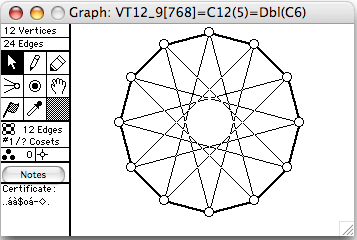

VT12_51 = ~C₁₂(5)=Dbl⁺(Prism(3))
