Last update=21 Feb, 2009

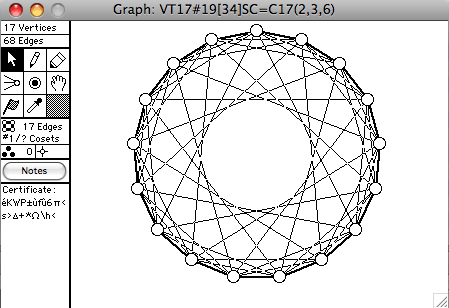

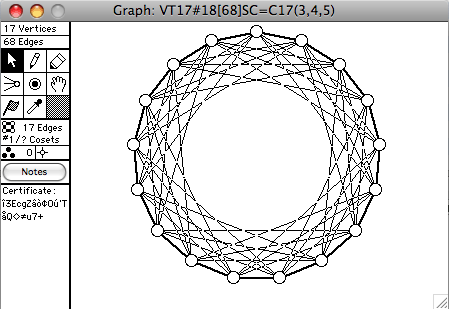

There are 35 connected vertex-transitive graphs on 17 vertices. The three that are self-complementary are shown here. The order of the automorphism group is given in square brackets in each window's title.

Notation:

• C_n means the cycle of length n
• C_n(k)  means the cycle of length n with chords of length k
• ~G   means the complement of G
• The suffix SC on a graph means self-complementary.

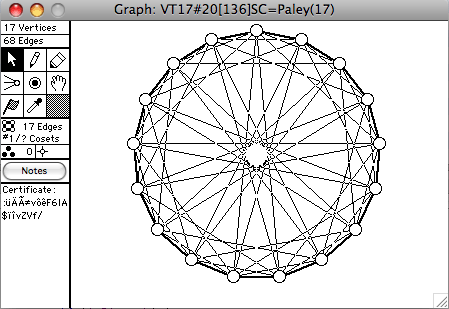

• Paley(n) means the Paley graph on n vertices, where n is a prime power congruent to 1, (mod 4). It has vertices 1,2,...,n, and all edges [i,j] such that i-j is a perfect square in GF(n). The Paley graphs are always self-complementary.
